This is the other model of ESP8266 module, this board has similarity with the ESP8266 V1, ESP8266 7, ESP8266 12E, the difference of this board has an on-board SMD SMC antenna and extra IO port, this module has self-contained SOC with integrated TCP/IP protocol same board what you get from the ESP8266 module. This is capable of hosting an application or access via internet & comes pre-programmed with an AT command set firmware it means you can simply hook this board to your Arduino device get as much WiFi ability.

Compare to ESP8266 12 this module has 6 more pins extra the D0, D1, D2, D3, CLK, CMD, GPIO6-GPIO11 but only the two of them can be used as regular GPIO, we need to modify the board circuitry before we can used this extra IO Pins.

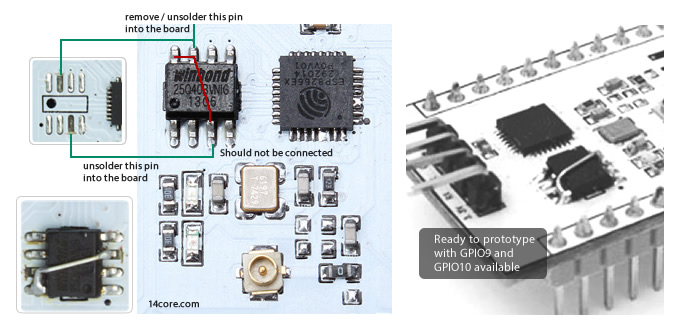

If you want to enable the extra pins the GPIO9 and GPIO10 just follow the diagram below.

Board modification

Underl-ESP8266-ESP201

As well as the other ESP module the ESP 201 comes with AT firmware preloaded. Unfortunately we need to modify the board circuitry to make this works bread board friendly. The UART pins should be moved to other side.

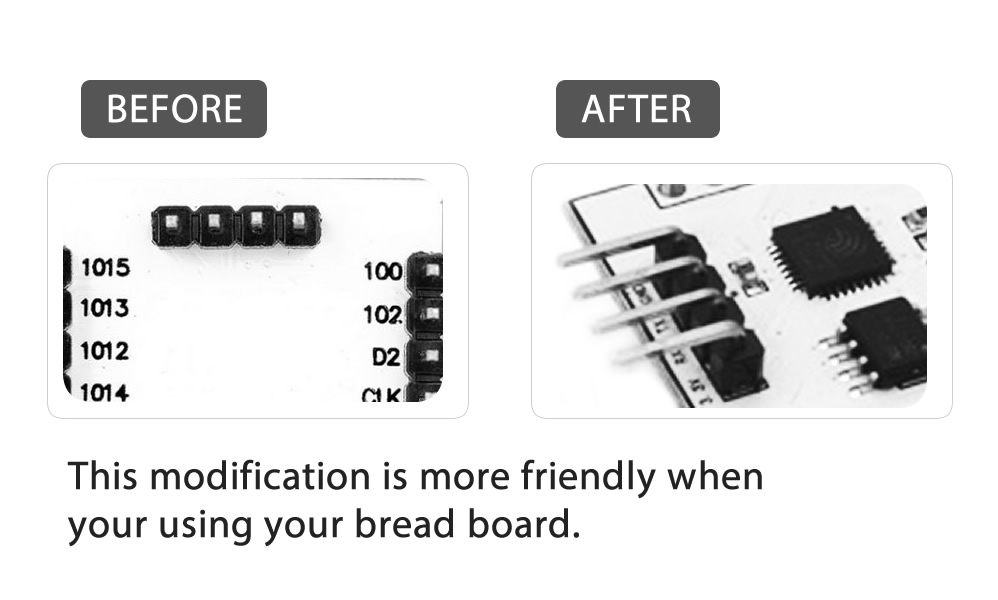

Relocating the UART Pins

SKU19514112312317-2

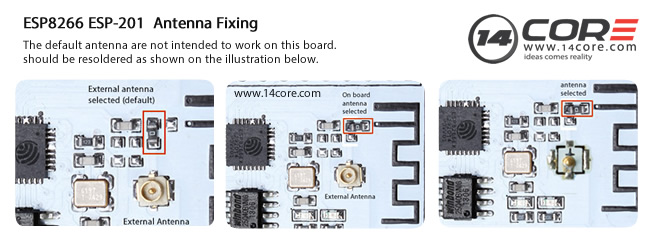

If you want to use the on-board antenna just follow the instructions below.

Modifying the board antenna

Relocating-ESP8266-ESP201-On-Board-Antenna

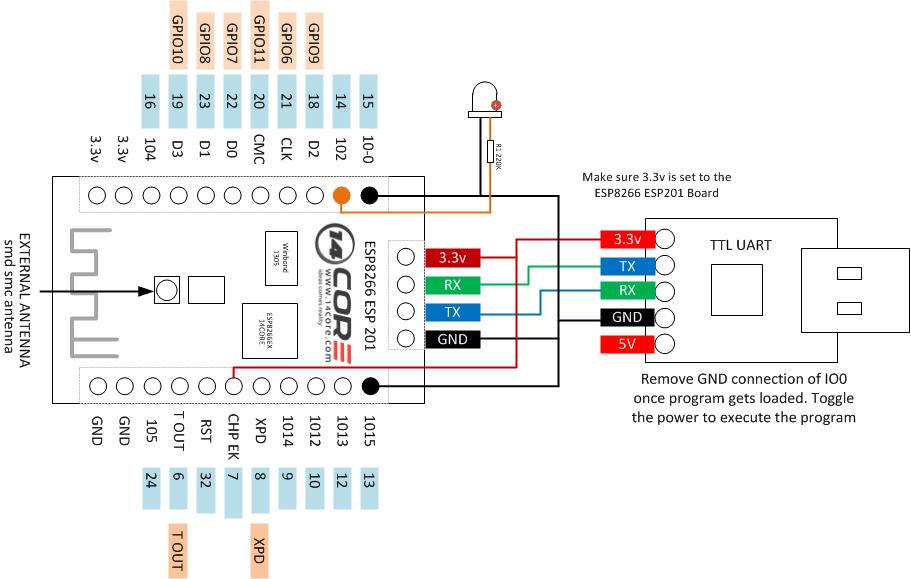

Wiring ESP8266 ESP201 with TTL UART

In this illustration below you need LED and Resistor to test this board via web browser

Flashing-The-ESP8266-ESP201-Module-Board-With-TTL-UART

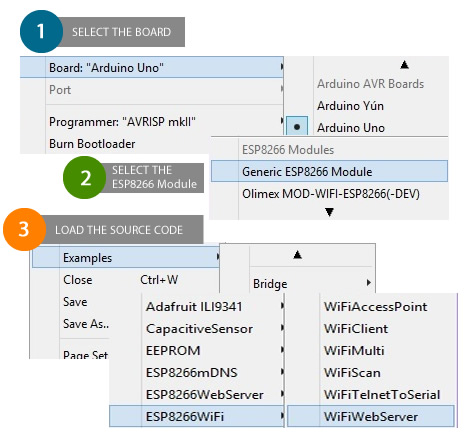

Programming the ESP8266 ESP201 using Arduino IDE

PRogramming-ESP8266-ESP201-Arduino-IDE

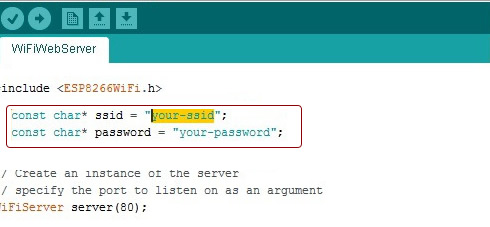

Before you going to flash the ESP8266 ESP201 Board you need to change the IP Address and the password see the illustration below.

COnnecting-ESP8266-ESP201-WEB

If you done uploading you code to the ESP8266 ESP201 Board disconnect GPIO-0 wire and toggle the power of ESP module

you can now remove the USB from the laptop and plug it again.

You can used to Phone to check the if your ESP8266 is up, you can down the app name Fing to check if there is a response from your ESP8266 board. Make it sure that your connected to you home network to execute ping command. The Fing app helps to identify an IP address on ESP8266 module which you can use for driving the GPIO-2 of the ESP8266 board which you connected the LED

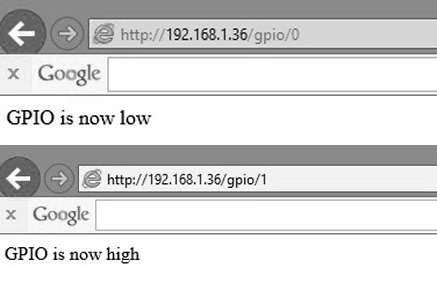

Here is the final step you need to used your browser to turn the LED into HIGH.

192.168.XXX.XXX/gpio/0 <- if you use the GIPO 0
192.168.XXX.XXX/gpio/1 <- if you use the GIPO 1
192.168.XXX.XXX/gpio/2 <- if you use the GIPO 2

Testing-ESP8266-ESP201-Web-Browser-Turning-High-GPIO-0

Download Code Library

Download the Arduino IDE + ESP8266 Code Library |Link

Download Additional Board Manager URLs field Json | Zip

Download ESP8266 Datasheet here | Zip

Download ESP8266 ESP201 PinOut- Diagram |  Zip

Wiring and flashing the ESP8266 ESP201 WiFi Transceiver
