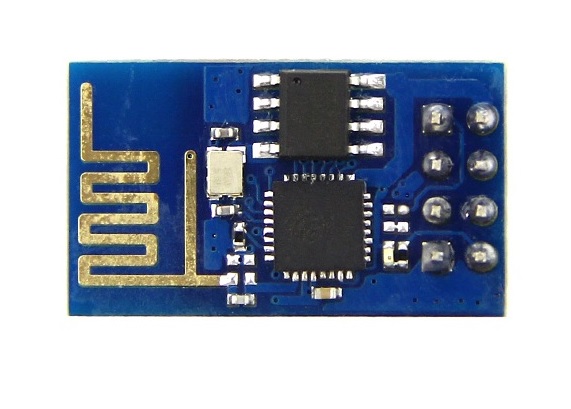

Wifi_Tranciever_Module-espThe ESP8266 Soc. ESP8266 is a highly integrated chip that has TCP/IP Protocol stack. It’s offers a complete and self contained Wi-Fi Network Communication Solution, allowing it to either host the application or offload all Wifi function from another application process. ESP7155 it has a powerful onboard processing and storage capabilities that allow it to integrated with the sensors and other application specific devices thought its GPIO(General Input Outputs with minimal development up-front and minimal loading during runtime. Its high and accurate on chip integration allows for minimal external circuitry and the entire solution, including front end module is designed to occupy minimal PCB area
Specification

Integrated TR switch, balun, LNA, power amplifier and matching network
Integrated PLLs, regulators, DCXO and power management units
802.11 b/g/n
Wi-Fi Direct (P2P), soft-AP
Integrated TCP/IP protocol stack
STBC, 1×1 MIMO, 2×1 MIMO
A-MPDU & A-MSDU aggregation & 0.4ms guard interval
Wake up and transmit packets in < 2ms
Standby power consumption of < 1.0mW (DTIM3)
+19.5dBm output power in 802.11b mode
Power down leakage current of <10uA
Integrated low power 32-bit CPU could be used as application processor
SDIO 1.1/2.0, SPI, UART

Features :

Quality of Service management
I2S interface for high fidelity audio applications
On-chip low-dropout linear regulators for all internal supplies
Proprietary spurious-free clock generation architecture
Integrated WEP, TKIP, AES, and WAPI engines
SDIO 2.0, SPI, UART
32-pin QFN package
Integrated RF switch, balun, 24dBm PA, DCXO, and PMU
Integrated RISC processor, on-chip memory and external memory interfaces
Integrated MAC/baseband processors

Download SDK Here > ESP8266 IOT SDK_v0.6
Download Sample Code > Example Code
Download IOT( Internet of thing) sample Code Here > IOT-Sample-Code
Download ESP8266 Datasheet > ESP8266 Specifications
Download Instruction Set Here > Espressif AT Instruction Set

Using ESP8266 Wifi Transceiver Module with SDK
