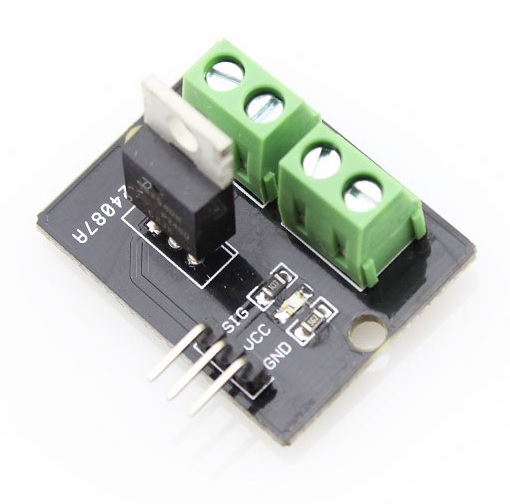

14Core_MostfeetMOSFET (metal-oxide semiconductor field-effect transistor) Help you drive a HIGH VOLTAGE & LARGE CURRENT Modules such as DC Motors, Water Pumps, LED Strips etc, using micro controller, MOSFET it is like switch but it is switching frequency it can reach up to 5 Mhz much faster than normal mechanical relay. This module can be use as a DC Motor Speed Controller or LED brightness along with ARDUINO Board.



  • MOSFET model: IRF520
  • Control Voltage: 3.3V~5V
  • Max Controlled Voltage: 24V
  • Max Current: 5A

NOTE that Heatsink is needed when current larger than 1A, the Heatsink is not included

Download the datasheet here > Mosfet IRF520





Working with EB- MOSFET Driver – 24V 5A Module
