In this illustration we will going to wire as stand alone the ESP8266 Version 7 or ESP8266 7 with on-board C113 Micro RF Connector. Compared to ESP8266 01, the ESP8266 7 has extended GPIO and excellent  wireless communication  capability. as you can see the illustration below it uses a adjustable SMD regulator to supply 3.3v to power-up our ESP8266 -07 board.

Required Components

1x ESP8266 Version 7
1x SMD Adjustable Regulator
1x FTDI / TTL UART USB

Wiring Diagram as Stand Alone

Note: You need to adjust the regulator to output 3v

ESP8266-Version-7-StandAlone-With-9v-Battery

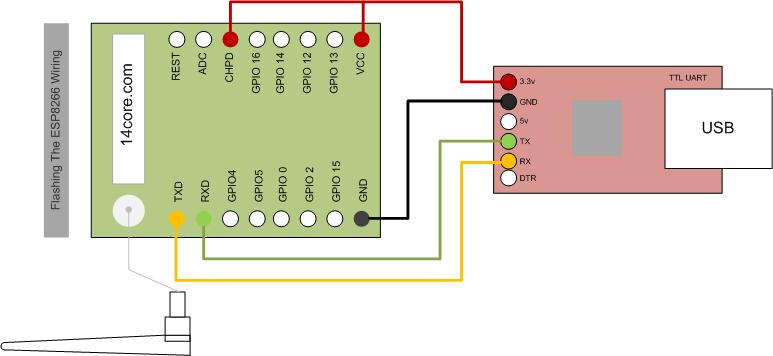

Flashing the ESP8266 07 Diagram

ESP8266-Version-7-Flashing-TTL-UART

> For flashing and programming the ESP8266 please refer to this link.



Wiring ESP8266 Version 7 Micro RF SMA Antenna as Stand Alone
