This is the 3.2 inch TFT LCD with 262K color on 480×320 Resolution. The QD320DB16NT9481RA shield support 16 wire data bus interface, working voltage at 3.3v ~ 5v power conversion and level conversion circuit. This shield can be directly inserted into the Arduino Mega2560, however, can also manually connected on other versions of Arduino, STM, and AVR. The shield also supports SD Memory card and SPI Flash circuit.

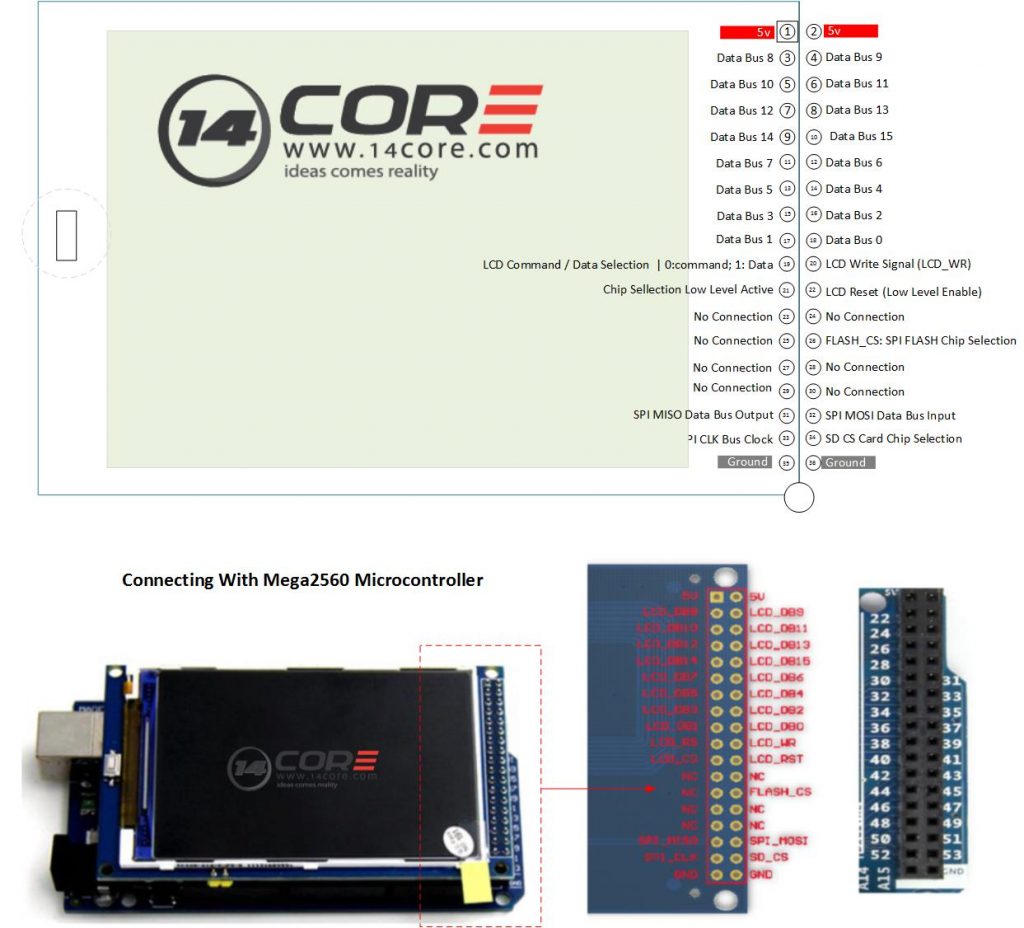

Pinout Diagram

32inch-lcd-megashield-2560-tft-screen-display-shield

Wiring with other Microcontroller

The following connection for 8bit and 16bit display shield does not have any required serial display pins. however, these requirements are for the default shields. if you want to used the shield that requires #define to be enabled the required pinout will change.

wiring-lcd-guide-pinout-diagram

For converting an image to c array please follow this link.

Test Sketch Code

Downloads

  • Download ILI9481 Datasheet | PDF
  • Download QD320DB16NT9481RA ILI9481 Code Libraries | ZIP
  • Download QD320DB16NT9481RA ILI9481 Read / Write SDCard Example | ZIP
  • Download QD320DB16NT9481RA ILI9481 Example Codes | ZIP



Driving the QD320DB16NT9481RA 3.2 TFT 480×320 LCD ILI9481 w/d MEGA2560
