This is the TEMT6000 an Ambient Light Sensor which is sensitive to the visible spectrum. Capable of sensing a light brightness around you. The TEMT 6000 is a silicon NPN epitaxial phototransistor in a miniature transparent mold for surface mounting which can be mounted onto a printed circuit board. These device is commonly used in your mobile phones, smart TV, Laptops, Notebook Computers, Cameras, Dashboards, Smart Watch, for ambient light sensing for display dimming.

TEMT6000 Module

Required Components

  • Arduino IDE | AtmelStudio
  • Arduino Microcontroller, NodeMCU, Teensy Board, TeensyDuino, ESP8266 12, 12E, ESP8266 NodeMCU, ESPDuino, ATMEGA328 16/12, ATMEGA32u4 16/8/ MHz, ESP8266, ATMEGA250 16 MHz, ATSAM3x8E, ATSAM21D, ATTINY85 16/8 MHz Note: The Diagram below is using NANO. (please refer to each MCU’s respective pin-outs)
  • TEMT6000 Module /
  • Jumper Wire / DuPont Wire
  • Solder Less Breadboard

Optional if you are not using TEMT6000 Module

  • TEMT6000
  • 10k Ohms Resistor
  • PCB Board

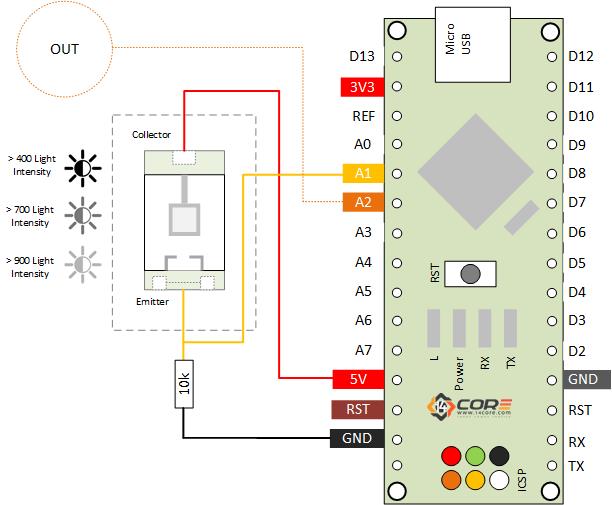

Wiring Guide

TEMT6000 Ambient Light Sensor

Source Code




Downloads

  • Download TEMT6000 Datasheet | PDF
  • Download Eagle File | Zip
