In this illustration we will going to flash the ESP8266 version 1 same or the NodeMCU or ESP8266 12, and 13, most ESP8266 board will do support on this tool just kindly follow the address bellow. As we going to flash to the latest firmware we need to have the updated latest firmware can be download from ESPRESSIFT or you can downloaded it here.

Wiring Guide




Note: Some ESP8266 board has a issue it keeps rebooting  while in operation keep note you need to add additional 220k or 470k electrolytic capacitor to VCC and GND please kindly follow the instructions below.

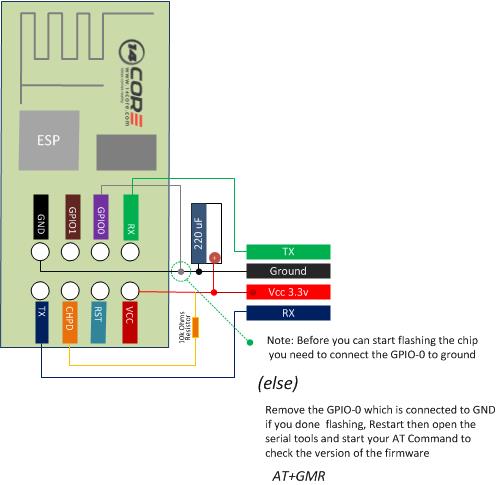

Flashing-ESP8266-Guide-Wiring-Pinout-with-Flash-Tools

Flashing the ESP8266 version 1 512KB

Flashing the ESP8266 version 1 512KB

Flashing the ESP8266 version 1 1mb

ESP8266-512KB-Flashing-Guide

Flashing with ESP Flash Download Tool version 2.3

Flashing-procedure-with-esp-flashing-tool

ESP8266  Flash Tool



Flash Download Tools Version 2.4 | FLASH_DOWNLOAD_TOOLS_v2.4_150924.rar
Flash Tool Version 2.4 Bin Source | Download Here

Flash Download Tools Version 1.2 | Flash Download Tools Version 1.2

ESPRESSIF Firmware

AT Version 0.20 on SDK Version 0.9.3 | AT_v0.20_on_SDKv0.9.3
ESP IOT SDK Version 1.4.0 | ESP_IOT_SDK_v1.4.0_15_09_18

Flashing & Upgrade EPS8266 v1 with ESPRESSIF flash tool
Facebooktwittergoogle_plusredditpinterestmail

One thought on “Flashing & Upgrade EPS8266 v1 with ESPRESSIF flash tool

  • at
    Permalink

    Hi, Great guide, especially the 10K resistor stuff. the Espresiff firmware works fine, however I can’t manage to upload with NODEMCU. Can you tell where do I put the NodeMCU bin file? at which address I mean?
    Thanks in advance,
    Zhivko

    Reply
